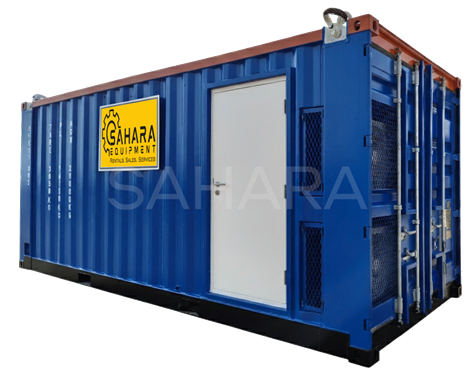

OFFSHORE_ZONE 2_20FT CONTAINER MODULE

GULF RENTAL SERIES_ZONE 2

Features & Benefits

- Sahara units are built for tough duty
- Designed and build for 50°C ambient
- Personnel access with single fire-retardant door with push bar / handle
- Emergency fire retardant door with push bar / lock handle
- Walls, floor and under roof all sides are A60 Rockwool thermally insulated lined with heat and fire-retardant material
- Flooring vinyl sheet flooring with side wall skirts aluminum angle

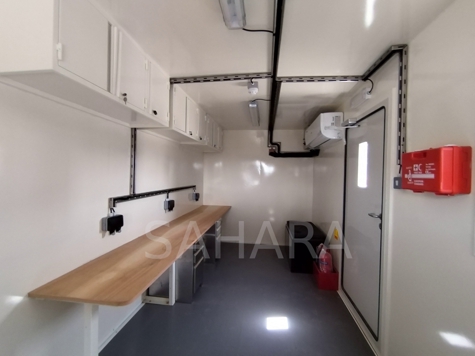

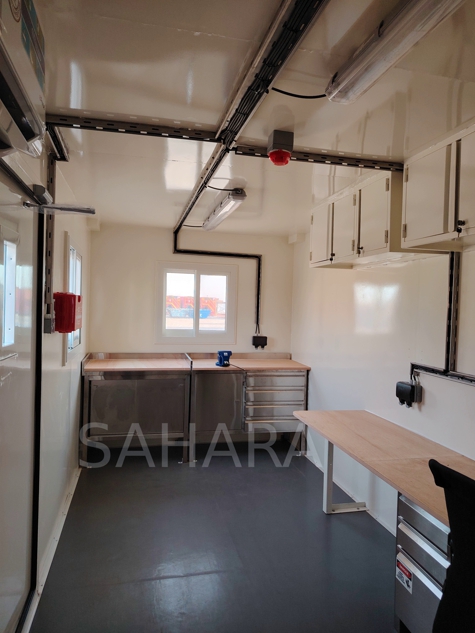

- Work bench inside on side wall, with bench wise, sliding drawers under the table and shelf rack
- Office desks inside on side wall, with sliding drawer under the table for 3 personal seating supplied with chair
- Wall hanged file/storage cabinet with hinged doors on side wall
- Fitting inside two-person seating under storage box
- SS wash basin with single bowl, water tap, external water supply inlet and drain connection (Optional).

Categories: Rental, CONTAINER MODULES, OFFSHORE

15 People are viewing right now

Description
Reviews (0)

Description

Offshore Skid Specification
Designed & Manufactured	Lifting in accordance with DNVGL-ST271, BS EN ISO 10855 & CSC Shipping Container
Dimension (mm) & Weight (kgs)	Dimension L 6,058 x W 2,440 x H 2,590, Weight 7,500
Construction	Container built with high-grade, heavy-duty corrugated sheet metal and tubing structure, walls roof panels 3mm – 4mm thick and floor 6mm thick steel sheet metal
Lifting Points	Forklift pockets integrated into base and 4 lifting pad eyes to top
Lifting & Handling	Lifting Set supplied with DNV type lifting sling set with bow shackles nut and bolt type, sling Angle: 45° Max
Electrical & Pressurization Specification

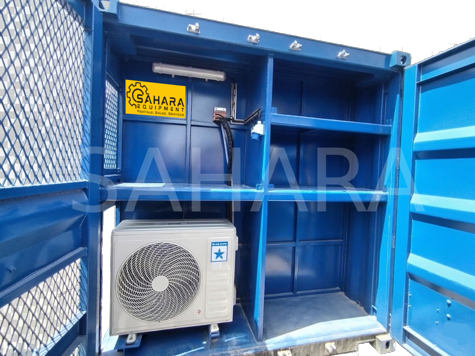

Multi voltage supply input transformer 12kVA, 380V-690V, 50 & 60Hz Supply cable 4Cx16mm2 H07RN cable 50meter long wrapped on hook at rear doors Ex’d Distribution Panel with 63A Isolator Switch and other controls for powering safe area electrical items, such as lights, sockets, air conditioner Tube lights 2x18W, sockets wall mounted under the desk table 4x13A-220V and Optional-1x13A-110V wall mounted sockets Ex’d Emergency Light: wall-mounted inside at the entrance door of cabin. Automatically energized on cabin power failure. Emergency time 180 minutes and charge time 24 hours. Emergency shut down push button of the panel. External cable entry through MCT and internal cable run through stainless steel cable trucking The cabin has Purge & Pressurizing system with blower fan and pressure transmitters which purge the cabin and maintains a positive pressure of minimum 25 Pa (0.1 in. water) above the surrounding atmosphere pressure during operation of the protected cabin with all openings closed. Safety low pressure alarm and beacon, when inside cabin pressure goes below 25 Pa alarm starts continuously indicating until the set pressure is built up. Ex Fire damper fitted with electrical actuator for purging the cabin Gas detectors CH4 & H2S and Ex Smoke detection system, with auto electrical shut down in presence of smoke 2kg CO2 & 4kg Dry power fire extinguisher and first aid kit fixed inside the cabin. Ex Split Air-conditioner, one unit of 24,000 BTU / 2.0 ton, 220-240, 50/60Hz fitted to provide cooling inside the cabin.
Finish
Exterior Finish:	3 coat marine epoxy primer and polyurethane top exterior coating
