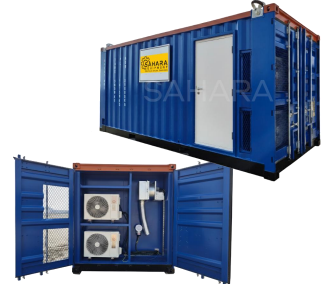

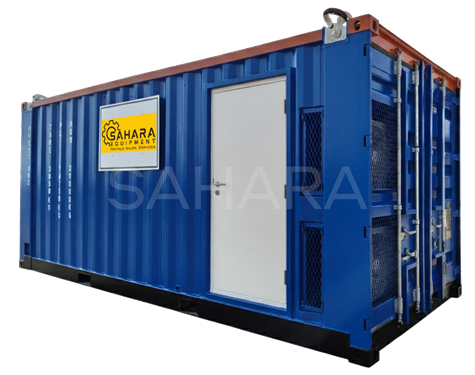

OFFSHORE ZONE 1&2_PURGED PRESSURISED 20FT CONTAINER MODULE

Features & Benefits

Sahara units are built for tough duty
Designed and build with copper radiators suitable for 50°C ambient
Personnel access with twin fire-retardant doors with push bar / handle
Emergency fire retardant door with push bar / handle
Walls, floor and under roof all sides are A60 Rockwool thermally insulated lined with heat and fire-retardant material
Flooring vinyl sheet flooring with side wall skirts aluminum angle

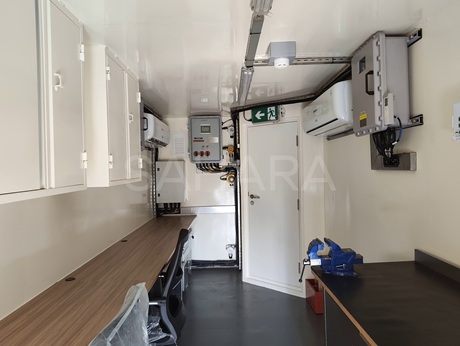

Work desk inside full length on side wall, with sliding drawers under the table for 3 personal seating
Wall hanged 3 numbers file/storage cabinets with hinged doors on side wall
Stainless steel wash basin with single bowl and cold water tap with external water supply inlet and drain connection

15 People are viewing right now

Description

Offshore Skid Specification	Details
Designed & Manufactured	Lifting in accordance with DNVGL-ST271, BS EN ISO 10855 & CSC Shipping Container standards
Construction	Heavy-duty container structure with high-grade steel, 4mm thick walls & roof panels and 6mm thick floor
Lifting Points	Forklift pockets at base and 4 top lifting pad eyes
Lifting & Handling	DNV certified lifting sling set with bow shackles, max sling angle 45°
Electrical & Pressurization Specification
Power Supply	Multi-voltage transformer 20kVA, 380V–690V, 50/60Hz
Supply Cable	4C x 16mm² H07RN cable, 50m length with rear hook storage
Control Panels	Ex’d pressurization panels (Zone 1 & 2) with 63A isolator and monitoring controls
Distribution Panel	Safe area panel for lights, sockets, AC and ventilation systems
Lighting & Sockets	2x18W tube lights, 4x13A sockets (220V), optional 110V socket
Emergency System	Ex’d emergency light with 180 min backup & emergency shutdown button
Cable Management	MCT external entry with stainless steel internal cable routing
Pressurization System	Purge & pressurizing system maintaining +25 Pa internal pressure
Safety Alarm	Low pressure alarm with beacon below 25 Pa
Fire & Gas Safety	CH4 & H2S gas detectors, smoke detection with auto shutdown
Fire Protection	2kg CO₂ & 4kg dry powder extinguishers + first aid kit

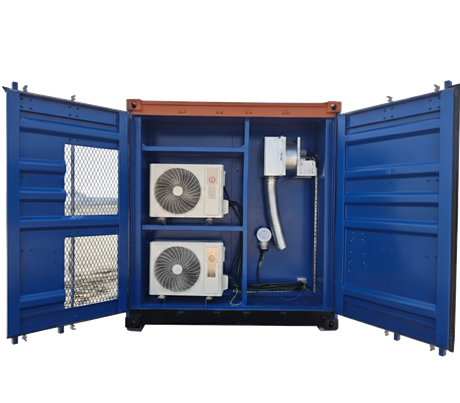

Air Conditioning	Ex Split AC, 24,000 BTU (2 Ton), 220–240V
Finish
Exterior Finish:	3 coat marine epoxy primer and polyurethane top exterior coating.
